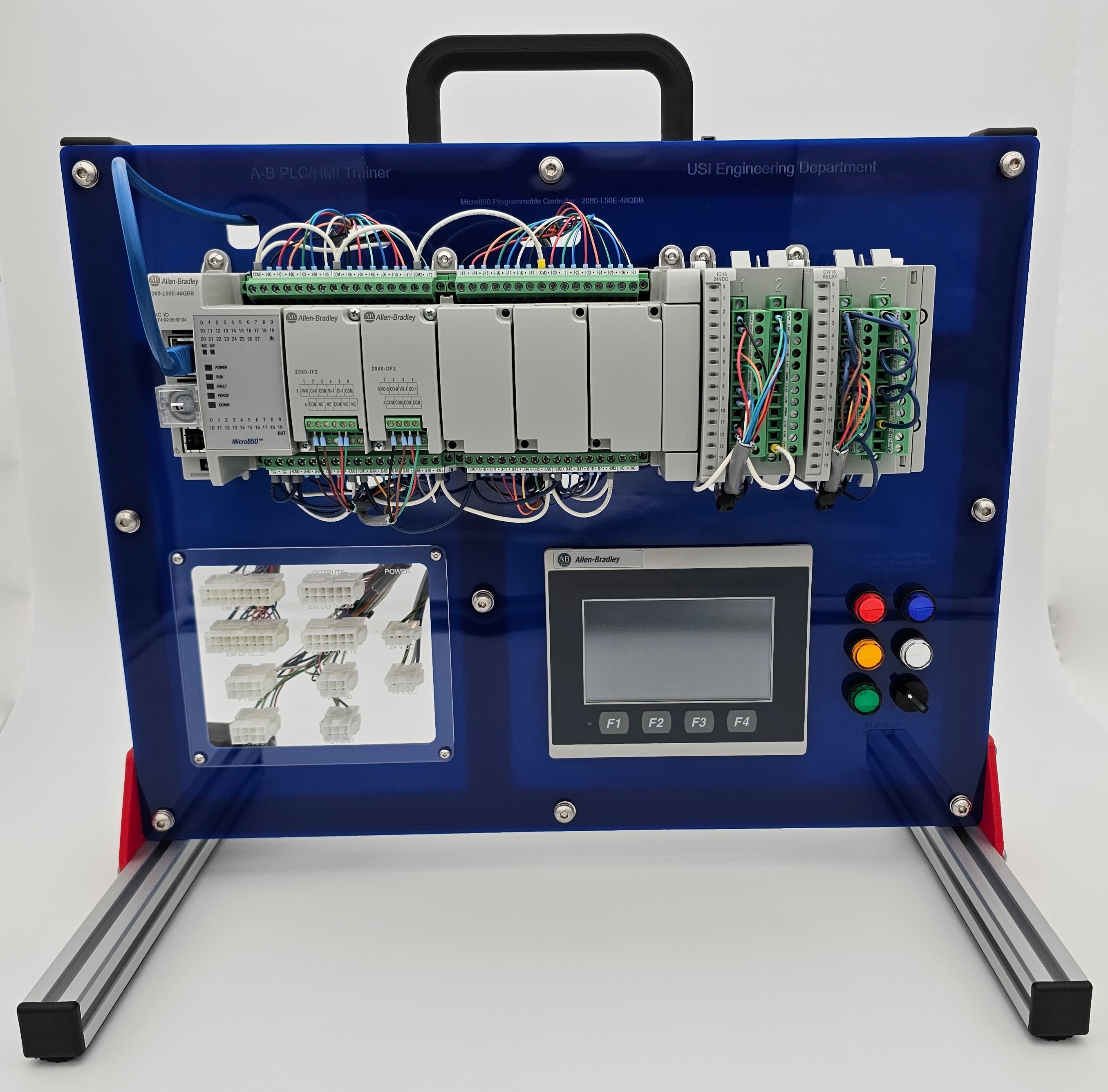

This trainer was designed for ENGR 383 Advanced Automation and is designed around the Allen-Bradley Micro850 Programmable Logic Controller (PLC) and Allen-Bradley PanelView 800 Terminal 2711R-T4T Human Machine Interface (HMI).

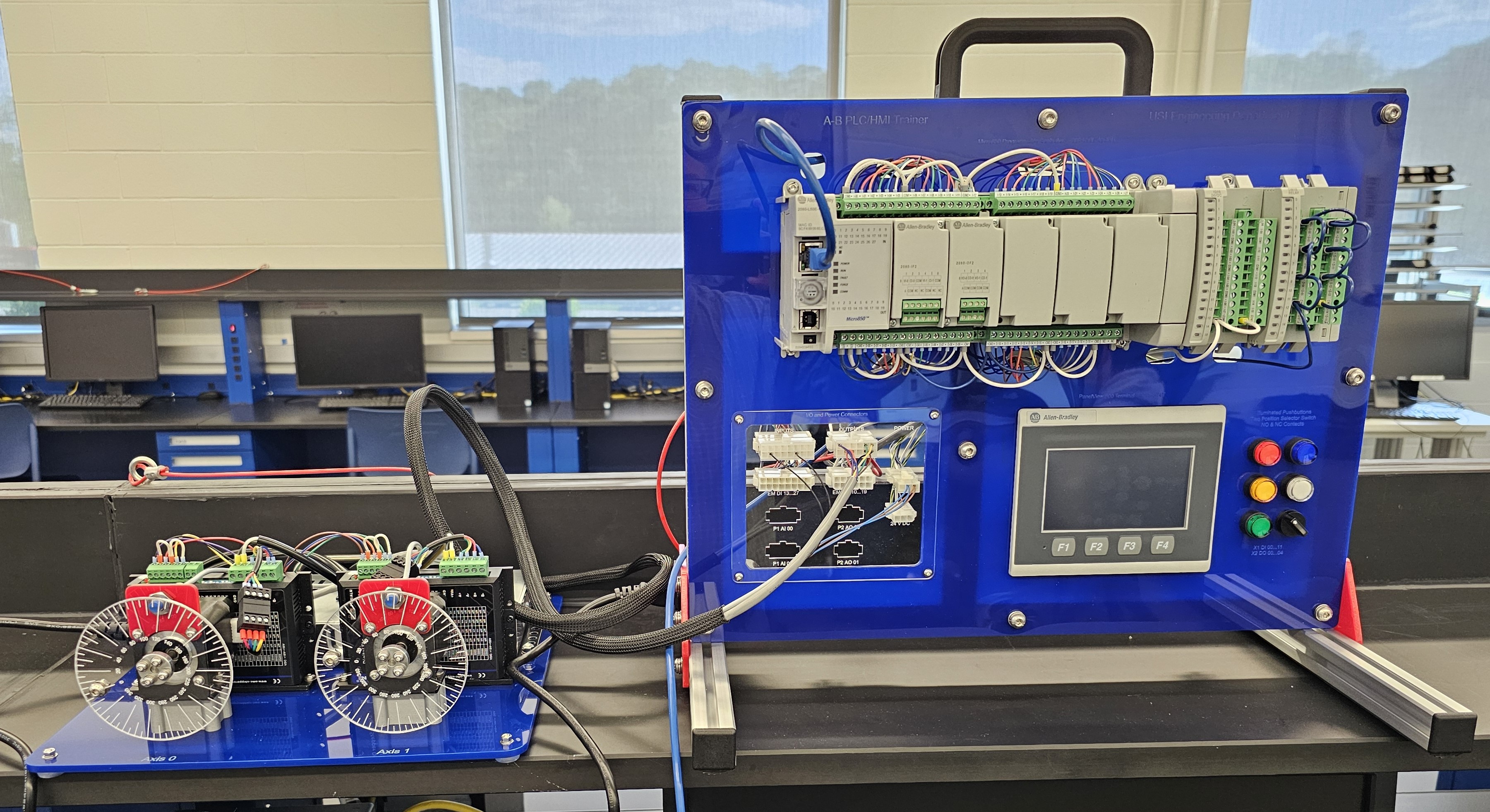

The trainer includes five illuminated momentary push buttons and one illuminated two-position selector switch. Connectors for digital and analog inputs and outputs are provided for quick connection to other modules such as the Sensor/Actuator Module and the 2-Axis Motion Control Module.
